Dielectric Arc Flash Harness Black

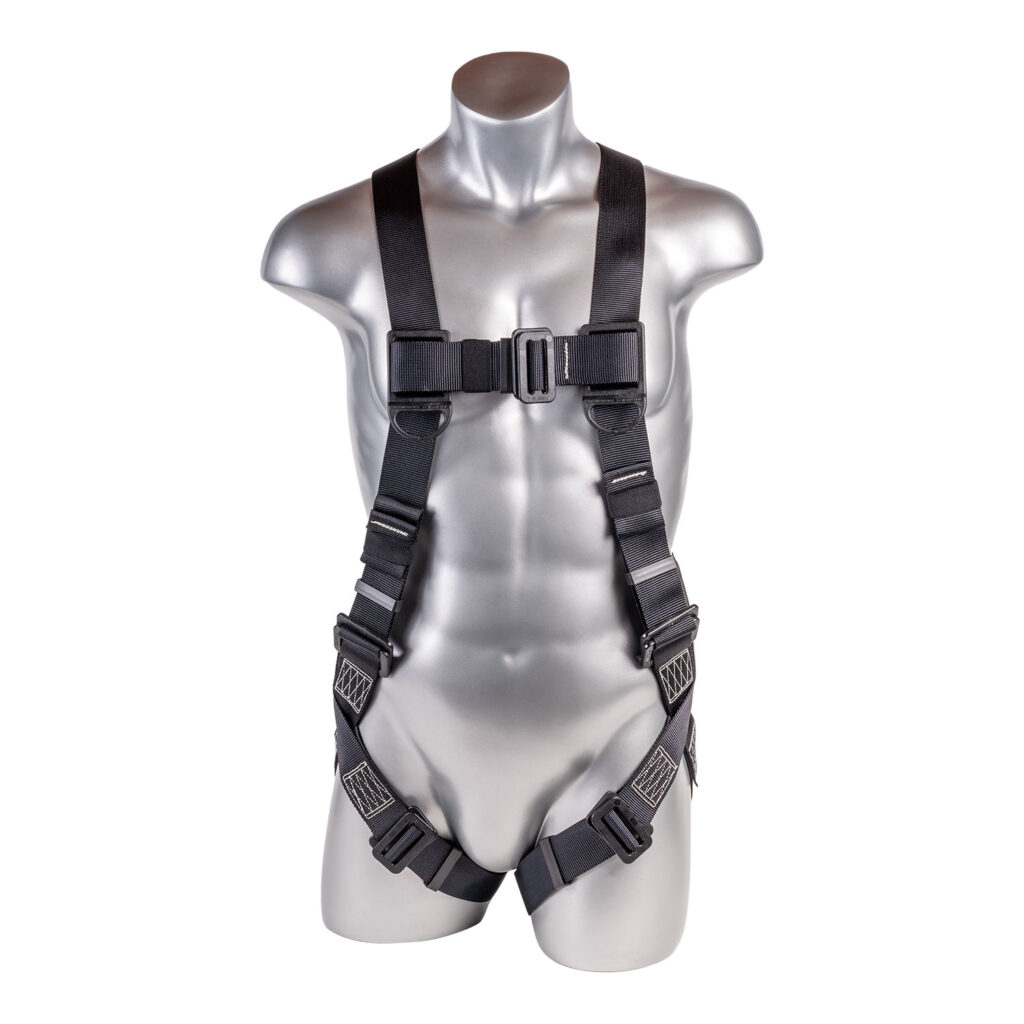

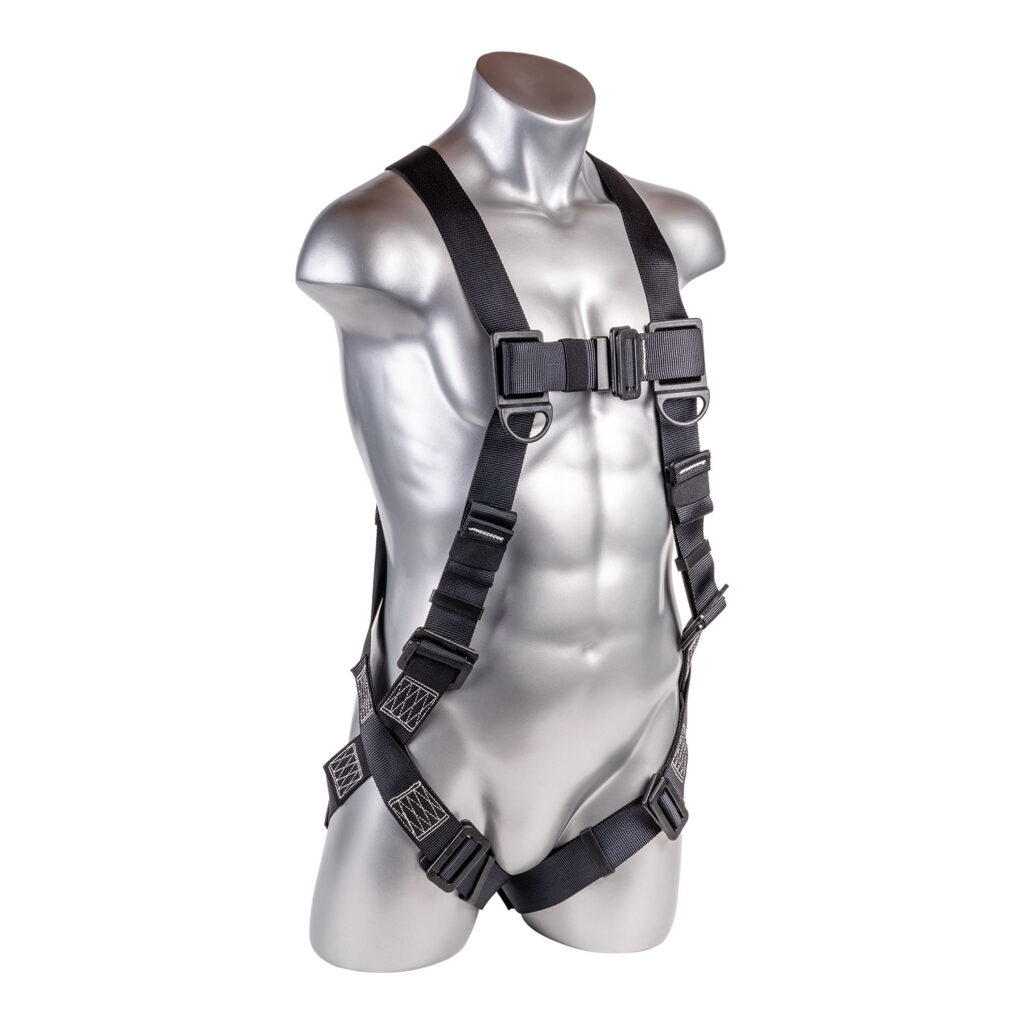

Stingray™ Series Harness 5pt., FR Dielectric, Back D-Ring, Shoulder And Waist Pads, Positioning Belt with Side D-Rings, Black

The Stingray™ Series 5-Point Dielectric Safety Harness is purpose-built for environments where electrical hazards are present. Designed with all-dielectric hardware, this harness helps reduce the risk of electrical conductivity while delivering reliable fall protection and all-day comfort.

The harness features a loop D-ring for fall arrest attachment and mating buckle closures on the chest and leg straps, allowing for quick, secure donning and doffing. Its 3-point configuration provides a streamlined, lightweight fit without sacrificing safety or performance.

Ideal for electrical utilities, power generation, telecommunications, and industrial maintenance, the Stingray™ Series harness is a dependable choice for workers who require non-conductive components and efficient adjustability on the job.

5 point adjustment harness, dorsal D-ring, pass through leg straps. All Dielectric hardware. Fall Indicators. Arc and Flame Resistant. Universal size. Meets or Exceeds ANSI Z359.11-2014. A10.32-2012.

USER CAPACITY:

130 – 310 lbs. (59 -140 kg)
DESIGN:

5 – Point adjustable full body harness made with FR webbing.
Shoulder straps with Dielectric friction buckles for easy adjustment
Chest straps & leg straps with Dielectric pass thru buckles for easy adjustment
One back Dielectric D-Rings for fall arrest.
Two Dielectric D-Rings at the waist level for positioning

WEBBING:  H134200021 Material: Polyester | Width: 1.73 in. ± 0.03 in. | Breaking Strength: 5000 lbs (Min)
STITCHING THREAD:

Material: Kevlar
METAL COMPONENT:  Alloy Steel core with reinforced Polymer.
VITAL TEST COMPLIANCE:

Static Strength: 3600 lbs. for 1 Minute
Dynamic Strength : The upper ring of dummy of 220.46 lbs mass is raised to a height which allow to generate 16kN force above the anchorage point for free fall.

WEIGHT OF HARNESS:  4.56 lbs. ± 0.02 lbs.
