The 2-Hole Anchor Plate with D-Ring offers a robust solution for roof anchors in Guyana, designed for permanent installations with a minimum breaking strength of 5000 lbs. Compatible with self-retracting devices for personal fall-arrest systems, it ensures safety and reliability in demanding environ

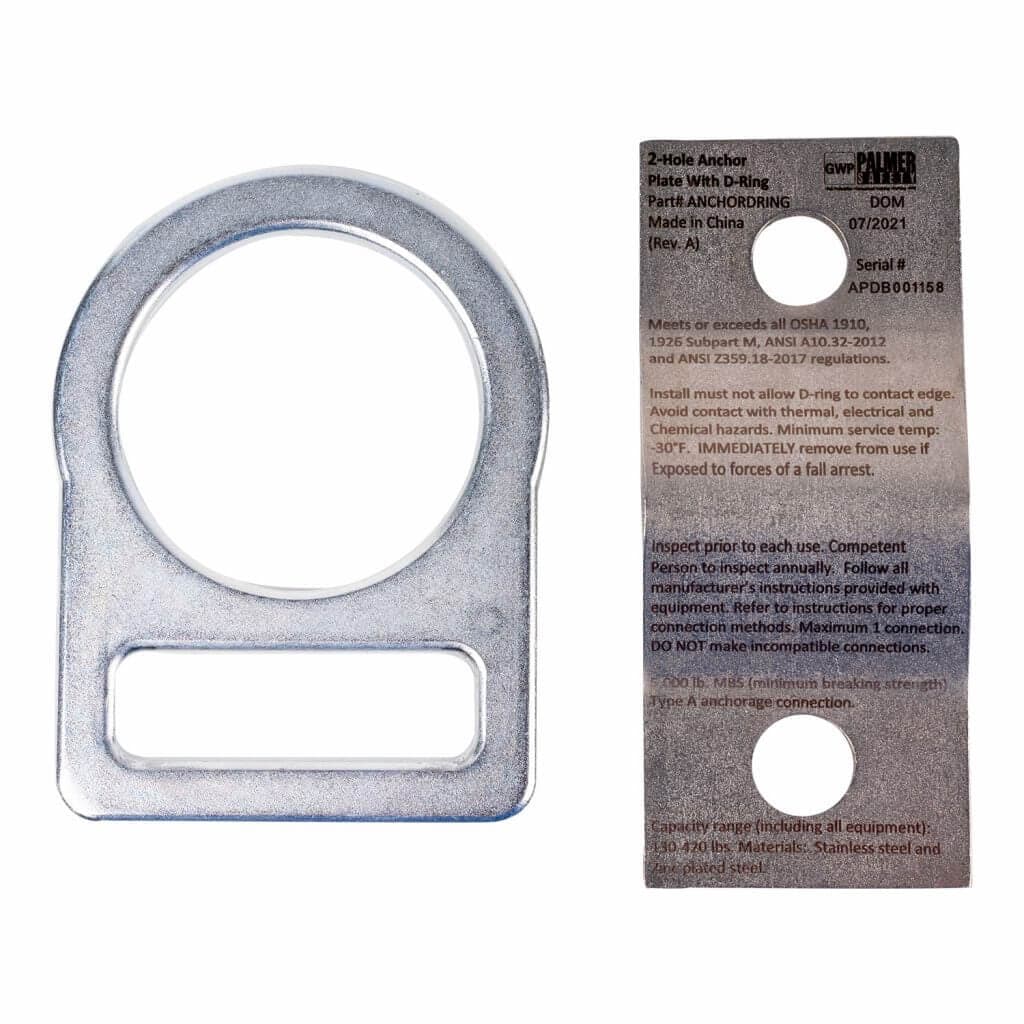

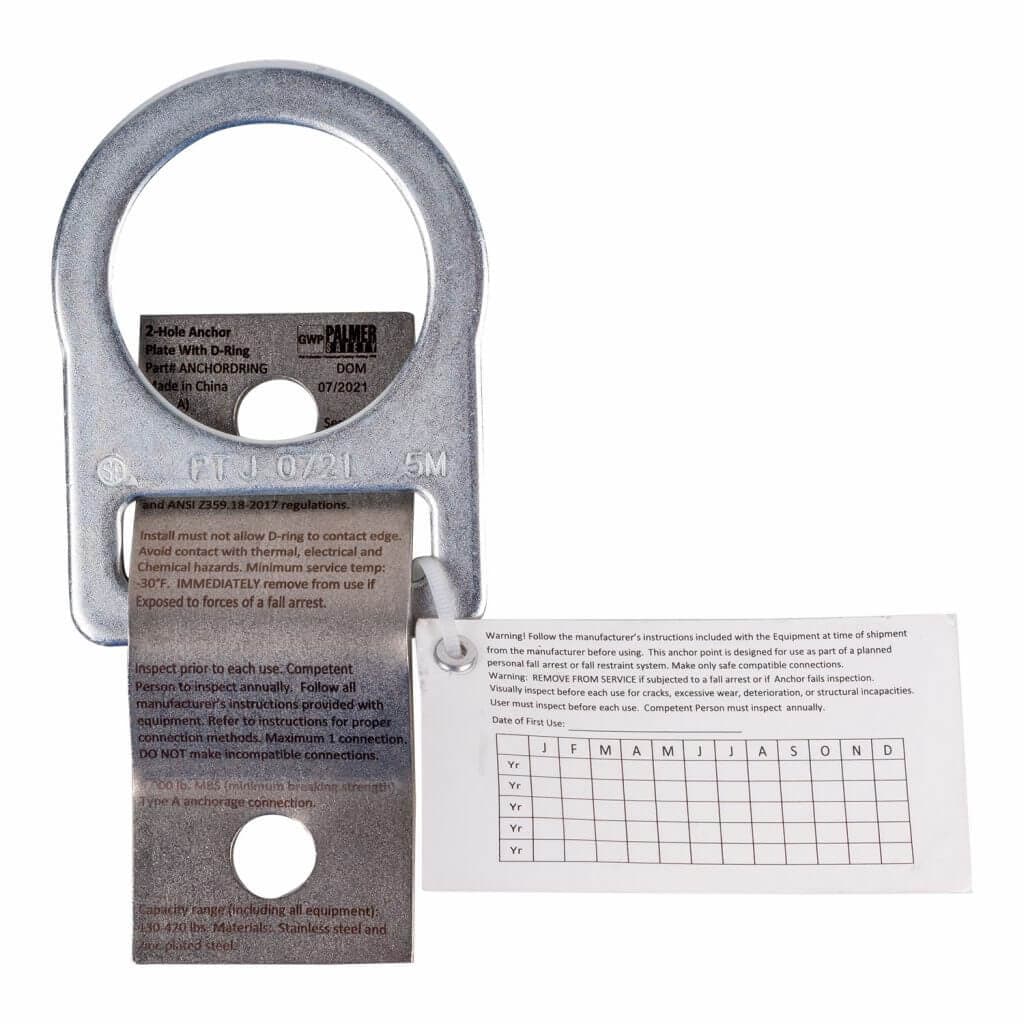

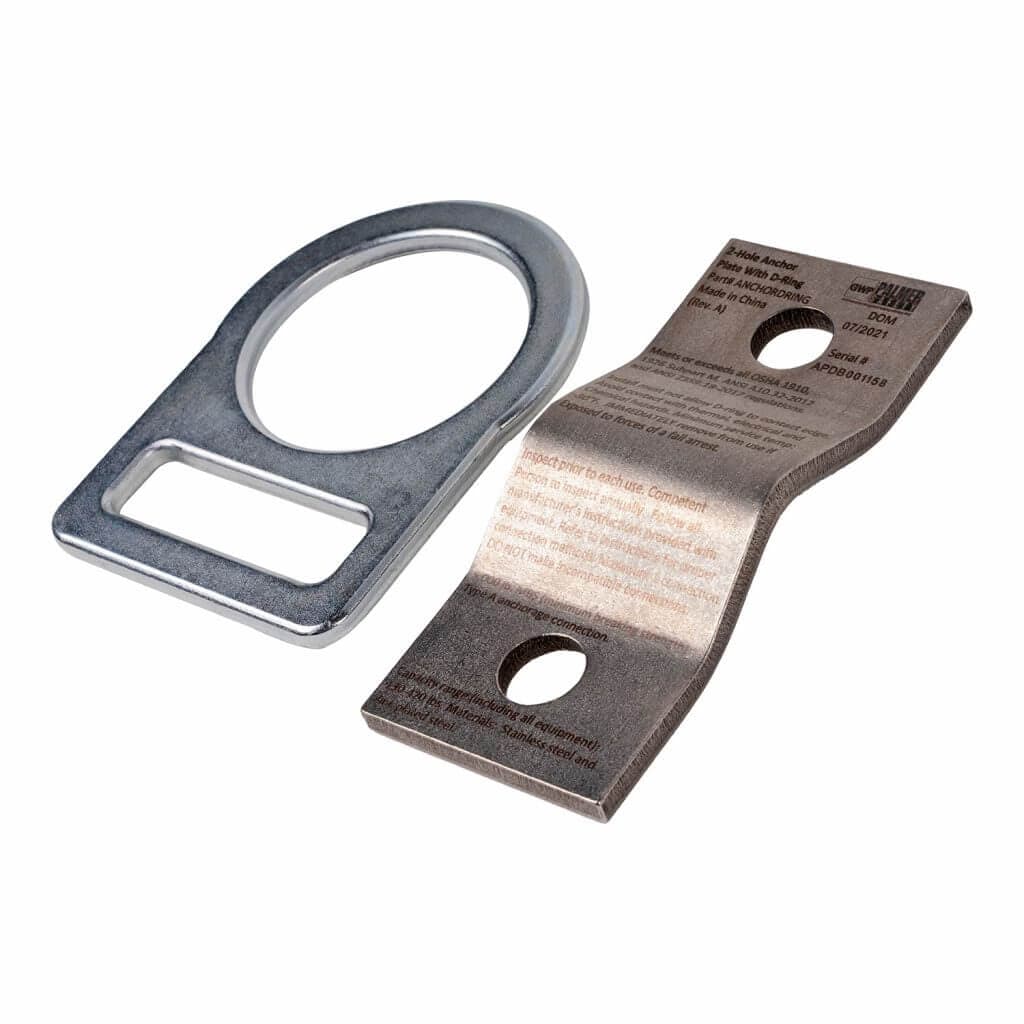

2-Hole Anchor Plate with D-Ring

With a stainless-steel baseplate, the 2-Hole Anchor Plate with D-Ring can be secured to steel or concrete surfaces by bolting, welding, or using suitable fasteners. It is ideal for permanent installations and those exposed to the elements. The large D-ring is freely movable with gloved hands. Minimum breaking strength is 5000 lbs. Meets or Exceeds OSHA 1926 Subpart M, OSHA 1910, ANSI Z359.18-2017, and ANSI A10.32-2012 Type A Anchorage Connector.CAPACITY:Maximum 1 connection per anchor Worker Weight Range: 130 – 420 lbs. including all tools and equipmentDESIGN:

Stainless steel baseplate resists corrosion
Small footprint: 1.97” x 4.72”
Compatible with horizontal lifelines

MATERIAL: Stainless Steel and Zinc-plated SteelMINIMUM PERMITTED SERVICE TEMPERATURE: -30° FMINIMUM BREAKING STRENGTH: 5000 lbs.CONFORM TO NORM:Meets or Exceeds OSHA 1926 Subpart M, OSHA 1910, ANSI Z359.18-2017, and ANSI A10.32-2012 Type A Anchorage ConnectorItem #: A00150

2-Hole Anchor Plate with D-Ring
