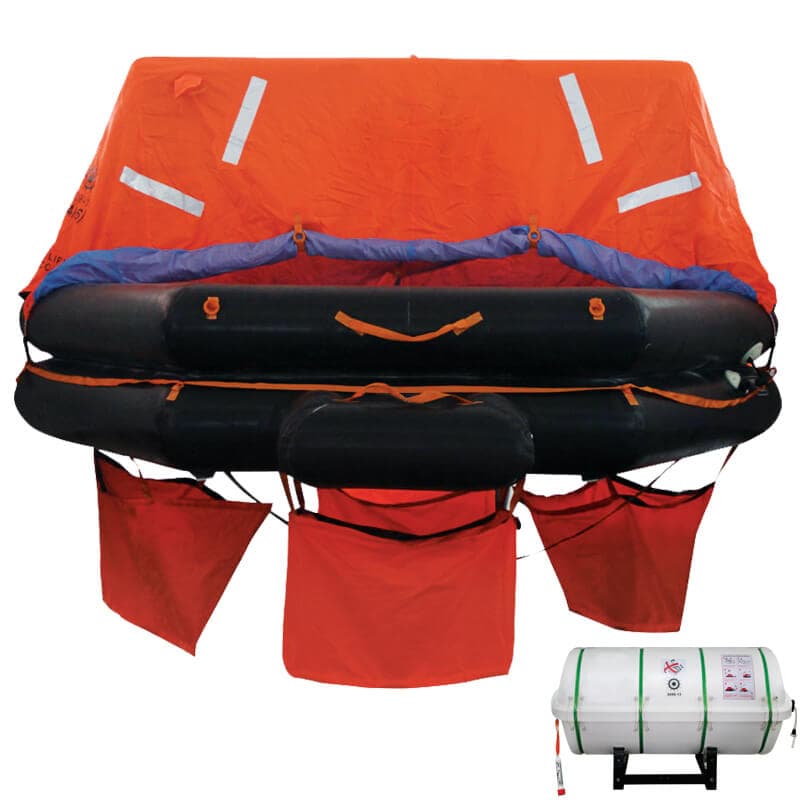

Liferaft SOLAS OCEANO, Throw Over-board

Liferaft SOLAS OCEANO, Throw Over-board

SOLAS/MED Approved by DNV GL • For use on board commercial vessels engaged on international voyages • Equipment Packs: SOLAS Pack A or SOLAS Pack B • Available Capacities: from 6 to 35 Persons • Flat Canister option available (Capacities from 8 to 12 Persons) • GRP Canister • Durable Rubber Fabric • Double Chambered Tubes • Stowage Height up to 36m (Painter line up to 46m) • Insulated Floor for low temperature conditions • High Visibility Canopy with SOLAS reflective tapes • Fully operational at temperatures from -300C up to +650C • Global Service Stations Network • Supplied with Deck Cradle in wooden box (79880-79882 are supplied in wooden box without deck cradle)

Code	Max Persons	Pack	Weight (kg)	A	B	C	D	E	F	G	H
79867	6	A	76	1200mm	2104mm	2104mm	1090mm	615mm	-	-	-
79868	8	A	85	1250mm	2390mm	2390mm	1090mm	615mm	-	-	-
79869	10	A	98	1400mm	2694mm	2694mm	1230mm	630mm		-	-
79870	12	A	108	1500mm	2924mm	2924mm	1230mm	630mm	-	-	-
79871	15	A		1600mm	3238mm	3238mm	1285mm	670mm	-	-	-
79872	16	A	127	1600mm	3330mm	3330mm	1285mm	670mm	-	-	-
79873	20	A	149	1600mm	4304mm	2974mm	1335mm	696mm	-	-	-
79874	25	A	178	1650mm	4894mm	3194mm	1490mm	757mm	-	-	-
79875	30	A	205	1700mm	5384mm	3414mm	1700mm	765mm	-	-	-
79876	35	A	223	1750mm	5899mm	3568mm	1700mm	765mm	-	-	-
79880	8	Flat-A	85	1250mm	2390mm	2390mm	-	-	564mm	994mm	405mm
79882	12	Flat-A	108	1500mm	2924mm	2924mm	-	-	664mm	1044mm	405mm
79903	6	B	66	1200mm	2104mm	2104mm	1045mm	545mm	-	-	-
79904	8	B	73	1250mm	2390mm	2390mm	1045mm	545mm	-	-	-
79905	10	B	82	1400mm	2694mm	2694mm	1090mm	615mm	-	-	-
79906	12	B	92	1500mm	2924mm	2924mm	1090mm	615mm	-	-	-
79907	15	B		1600mm	3238mm	3238mm	1230mm	630mm	-	-	-
79908	16	B	100	1600mm	3330mm	3330mm	1230mm	645mm	-	-	-
79909	20	B	120	1600mm	4304mm	2974mm	1285mm	670mm	-	-	-
79910	25	B	135	1650mm	4894mm	3194mm	1335mm	696mm	-	-	-
79911	30	B	140	1700mm	5384mm	3414mm	1490mm	757mm	-	-	-
79912	35	B	148	1750mm	5899mm	3568mm	1490mm	757mm	-	-	-
