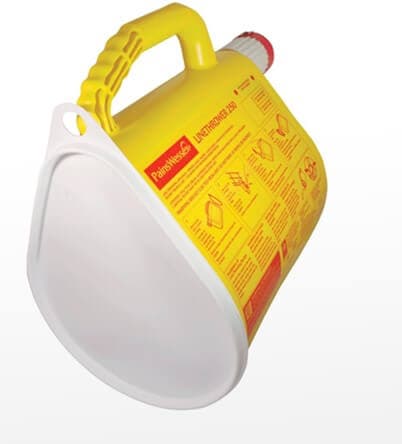

PainsWessex Linethrower 250

PainsWessex Linethrower 250

A self-contained line-throwing appliance consisting of a weatherproof plastic casing with end cap, twist-grip trigger assembly, rocket and line. To comply with SOLAS requirements, four complete rocket and line assemblies (Item No. 9502000) should be carried on board. The device has a throwing range of between 230m and 250m. A solid propellant is used which guarantees a highly accurate flight path even in strong sidewinds. Application The Pains Wessex 250 is designed for ease of operation in the most extreme weather conditions. It can be used in all situations where a line is required to be passed accurately and quickly, these include:-

• All line-throwing operations at sea between vessels, ship-to-shore, shore-to-ship and shore based rescue services.
• Rescue of swimmers in distress.
• Line carrying across obstacles and rough terrain.

Specifications

• Projects a line to a nominal range of 250m in calm conditions.
• Length: 33 cm (13.0 in) • Height: 31.3 cm (12.3 in) • Diameter: 20.5 cm (8.1 in)
• Gross Weight: 4.7kg (10.36 lb.)
• Net Weight: 4.4 kg (9.7 lb.)
• Rocket Weight Max: 535g (18.9 oz.)
• Explosive Content Max.: 106g (3.74 oz.)
• Line breaking strain: >2 kn

Item Nos. Complete unit 9502000 · Body and line 9500700 · Rocket 950080 (sold separately)
